Annexure A

L34 Yacht Specs & Inventory

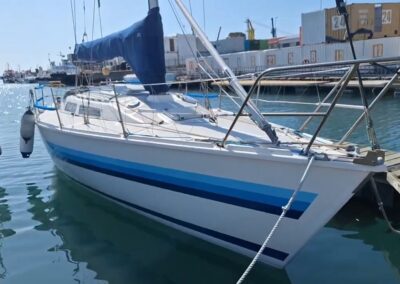

Vessel Overview

• Design: L34
• Designer: Angelo Lavranos
• Builder: Robertson and Caine, Cape Town
• Year Launched: 1987
• Length Overall: 10.53m
• Length Waterline: 9.2m
• Beam: 3.326m
• Draft: 1.938m
• Displacement: 4 tons
• Material: Fibre glass
• Keel: Fin and bulb
• Rudder: Spade type
• Steering: Tiller
• Propeller: Folding Twin blade with new anode on prop shaft

Engine

• Make: Yanmar 2GM20 (18HP) Serviced in November 2025 by Yanmar
• New diesel filter mounted on fuel tank
• Fuel Capacity: 60 litres (1 stainless steel tank)
• Estimated Engine Hours: 2500 hours
• New stern gland Nov 2025

Rigging

• Sloop with fractional rig
• Aluminum mast and boom; Bellamy boom replaced in 2022
• Mast is keel-stepped

Sails

            Sails in good condition

• Main sail in canvass cover

No 1 jib in canvass bag

• 3 jib
• Storm jib

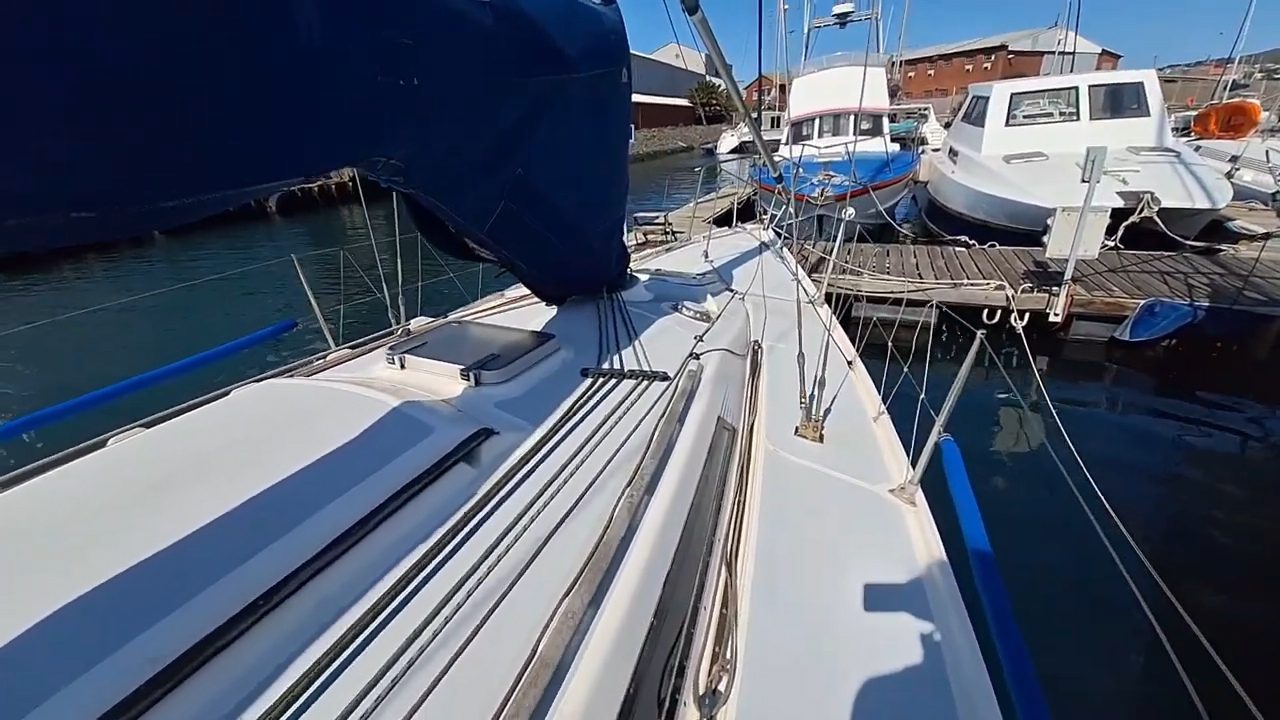

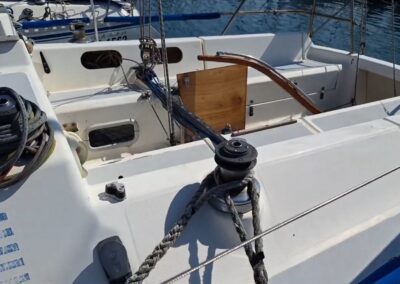

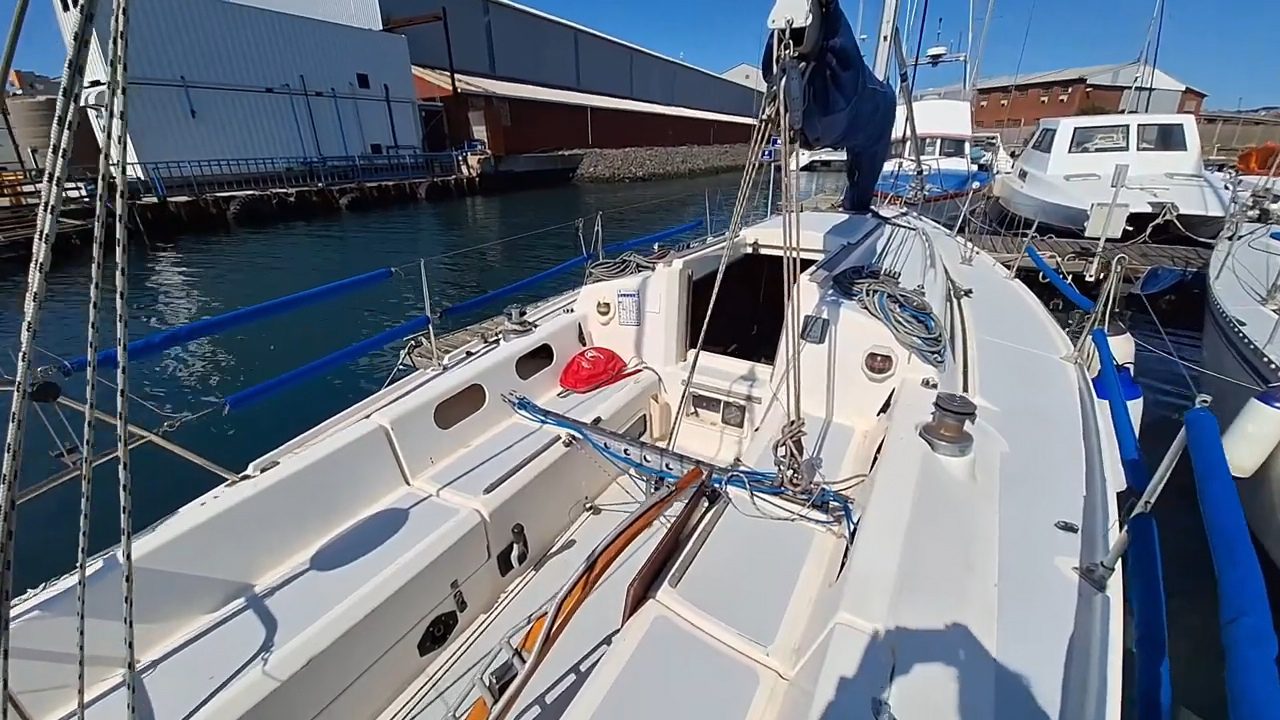

Deck Equipment

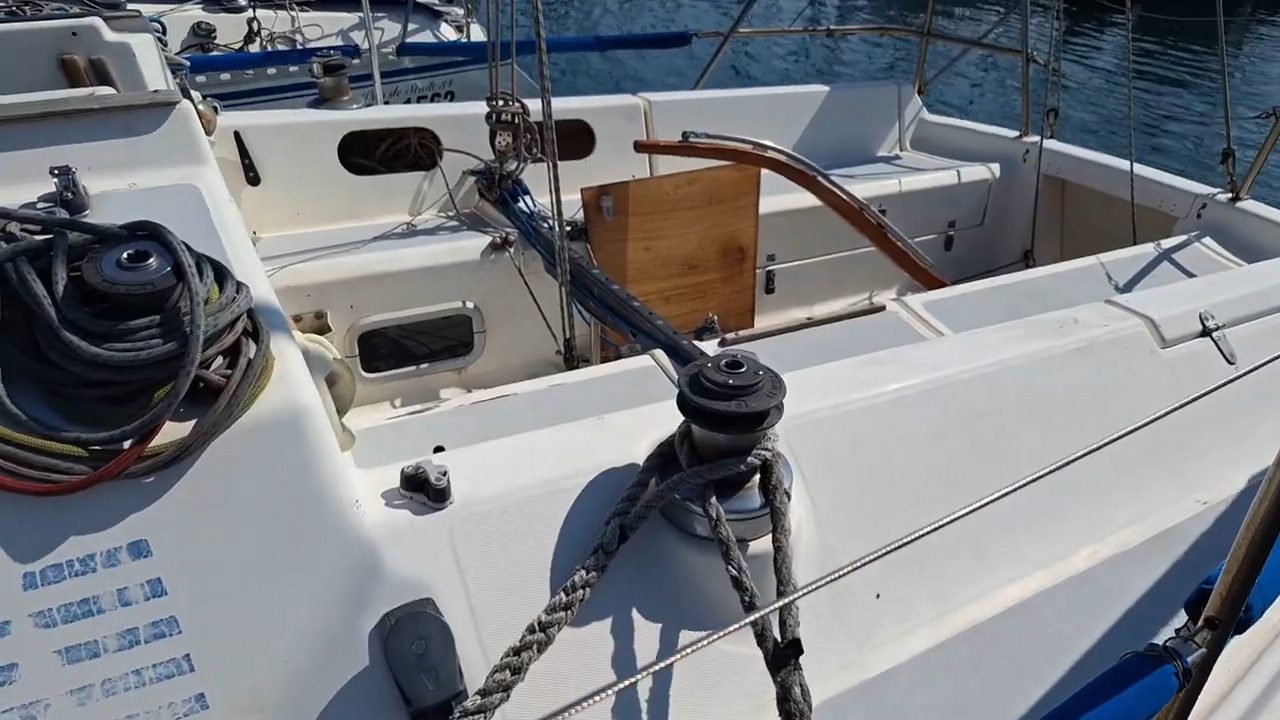

• 2 x 43 winches
• 4 x 16 winches
• 3 winch handles
• Bruce anchor with 10m chain and 40m rope (no electric windlass)

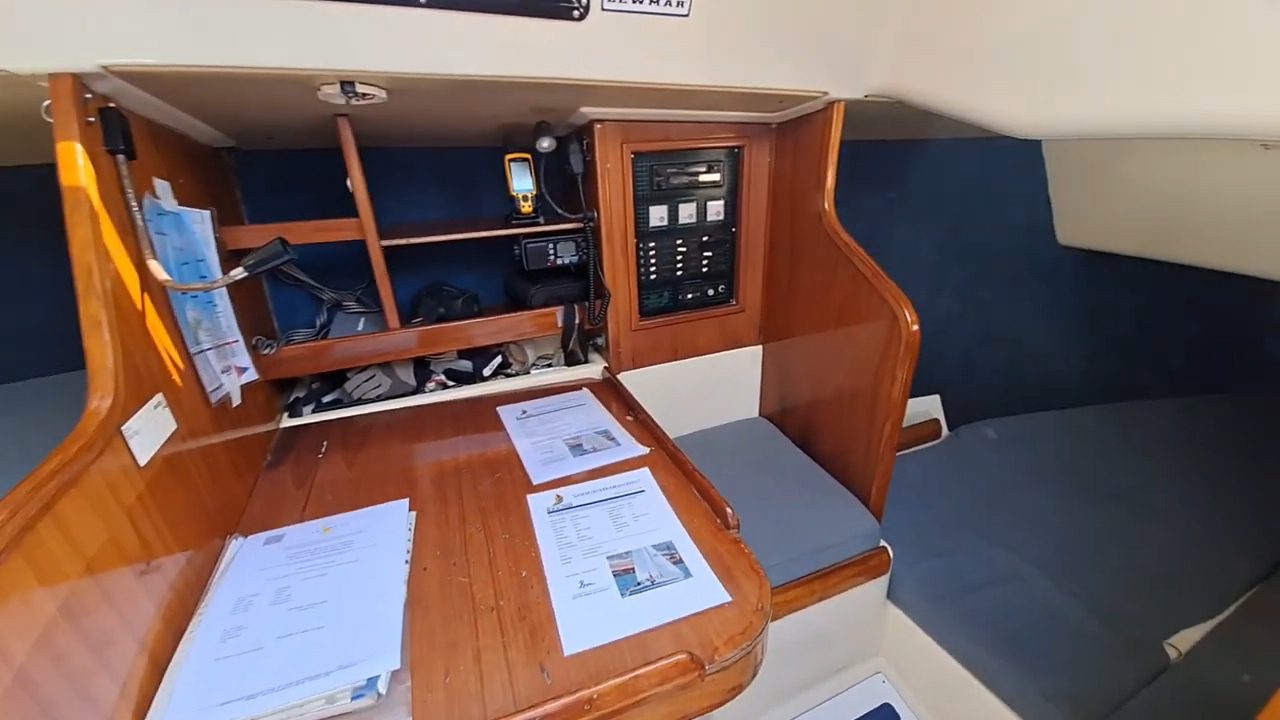

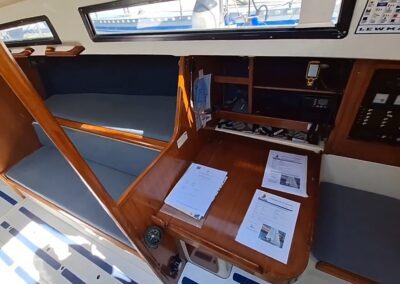

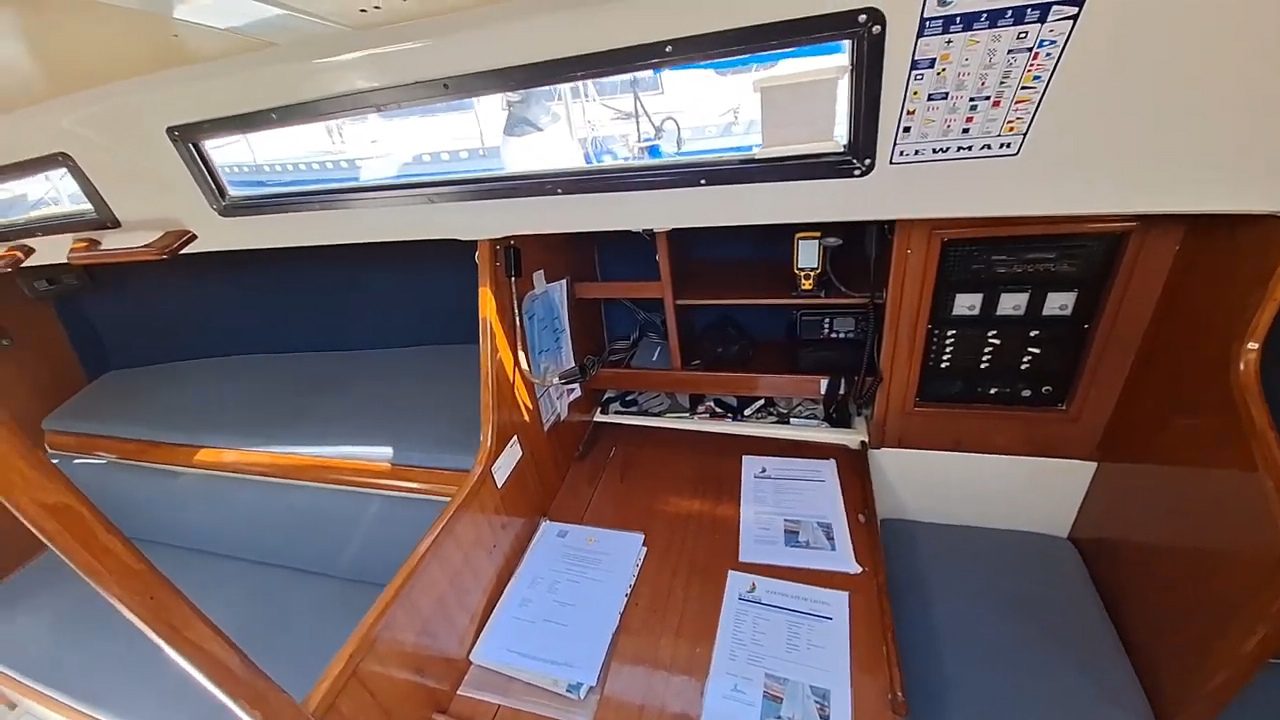

Electrics and Navigation

• 2 x 12V, 100Ah batteries (new in Nov 2025)
• Alternator
• Music system

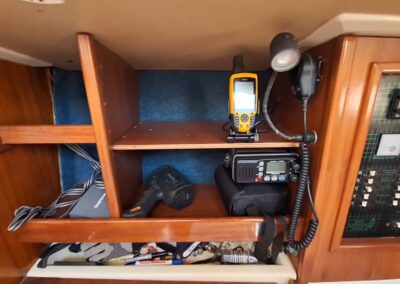

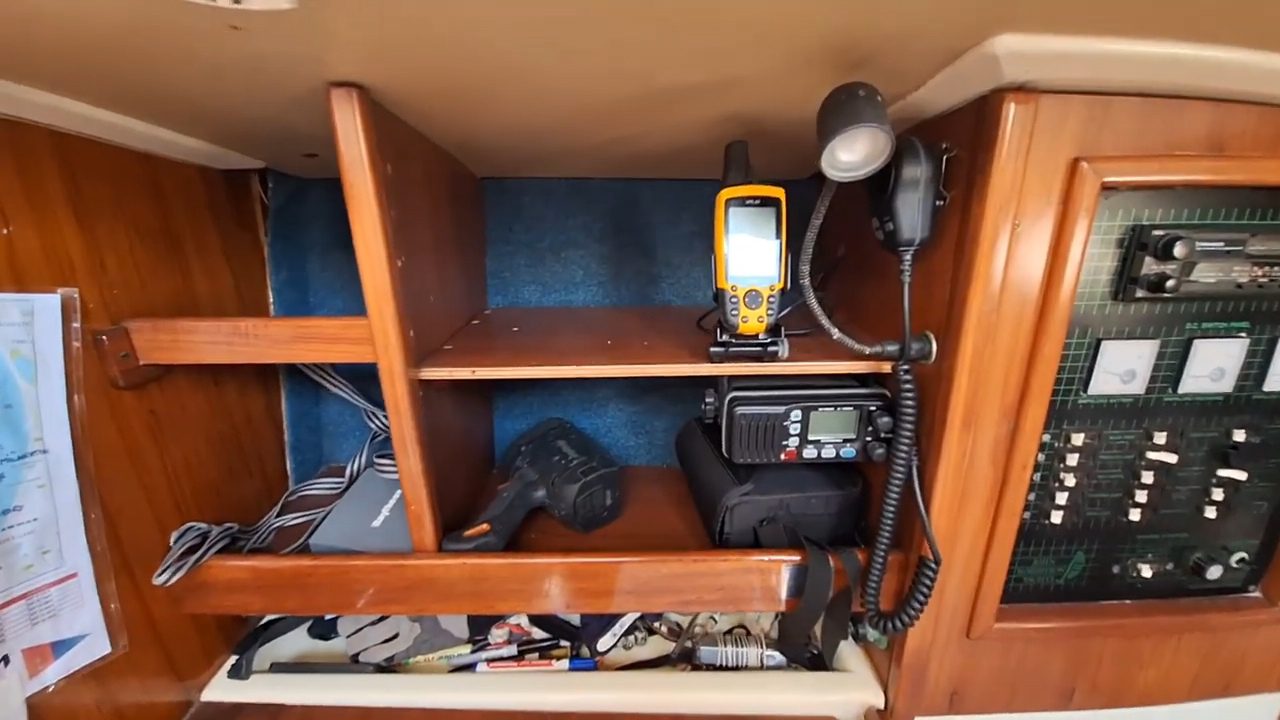

• VHF DSC radio
• GPS Handheld
• 2 compasses on coachroof
• Raymarine log, depth, and heading
• Autohelm for Tiller

Plumbing

• Water capacity: 170 litres in 2 stainless steel tanks
• Manual foot pump system for water
• Electric bilge pump
• 2 manual bilge pumps

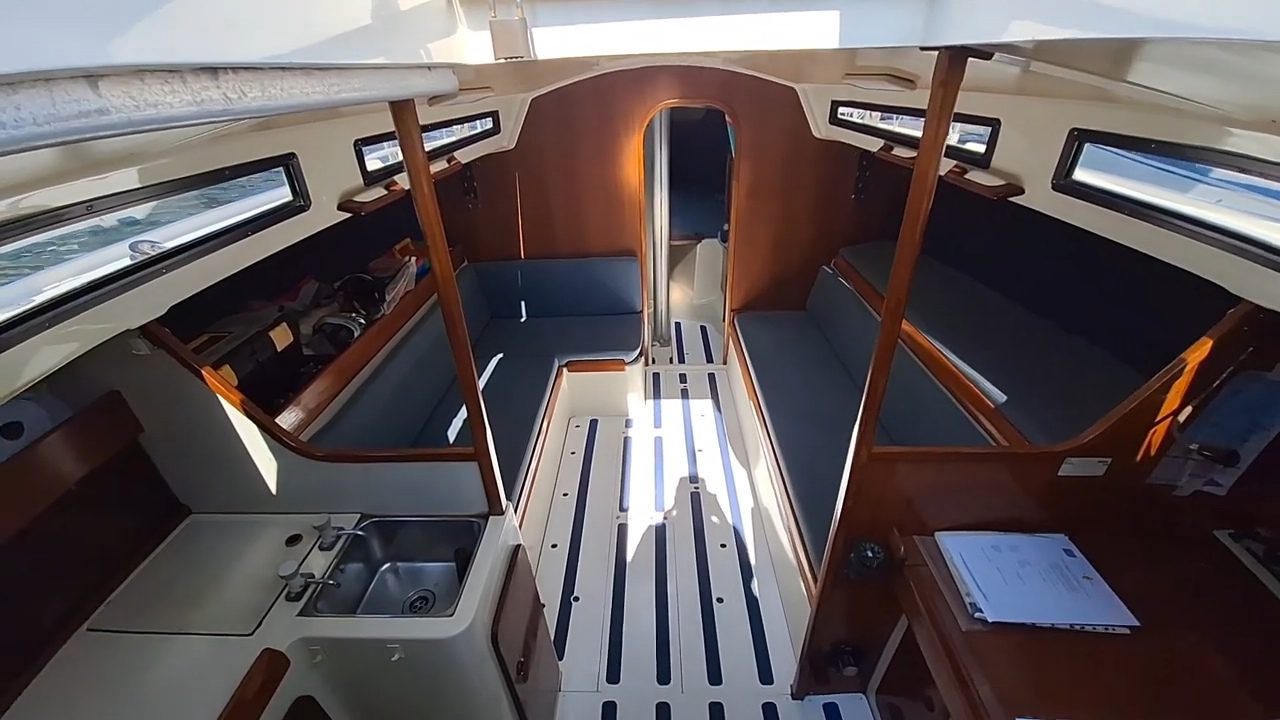

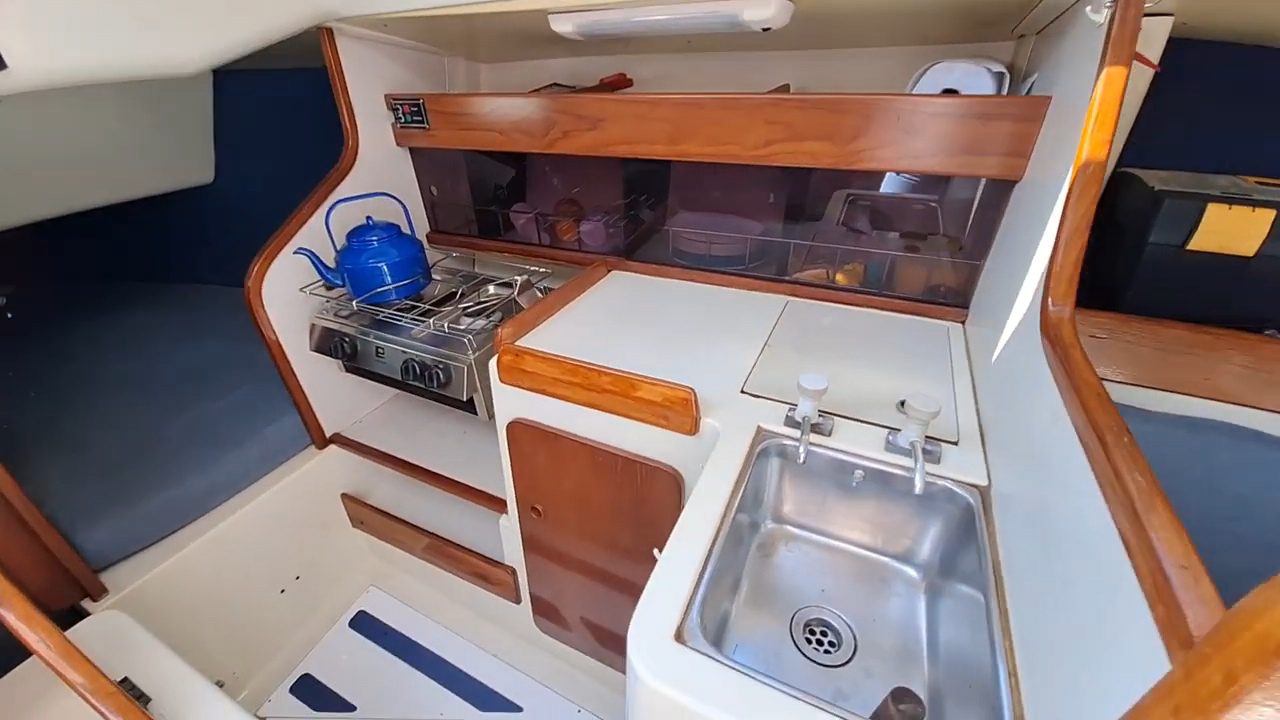

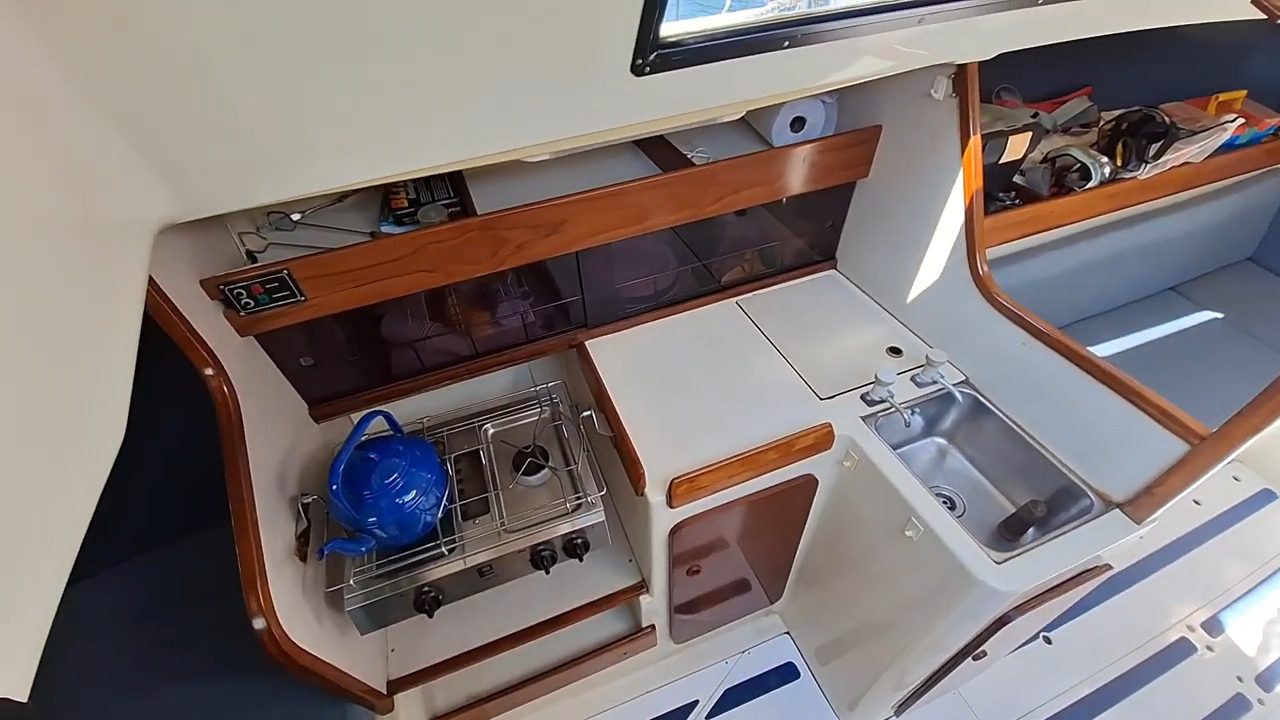

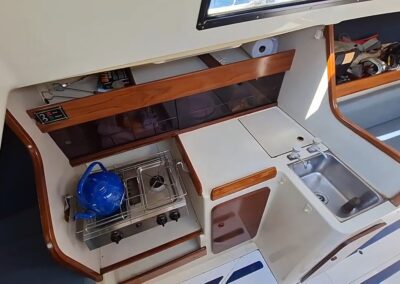

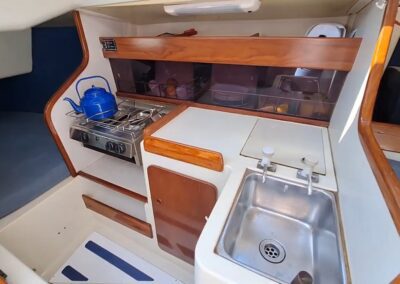

Galley

• Fresh water via foot pump
• Gas hob cooker with 2 plates
• Sink
• Top-loading cooler chest (not a fridge)

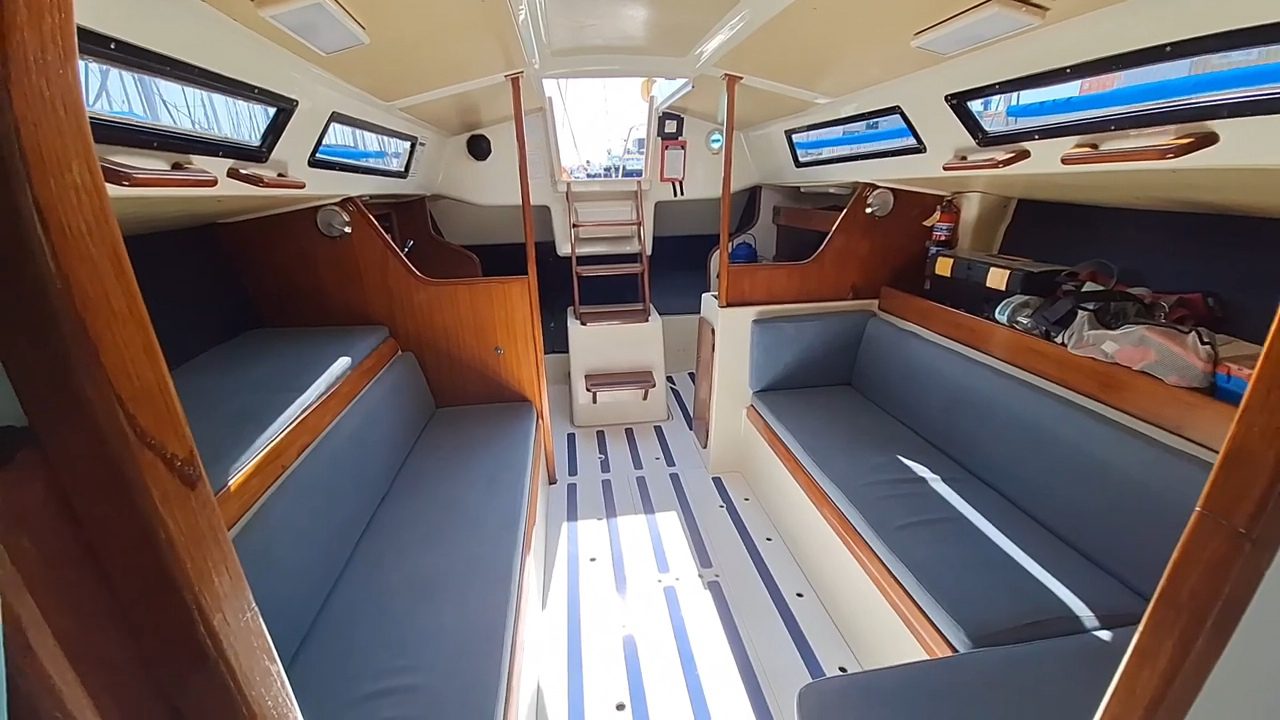

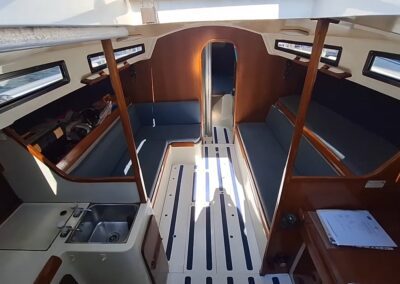

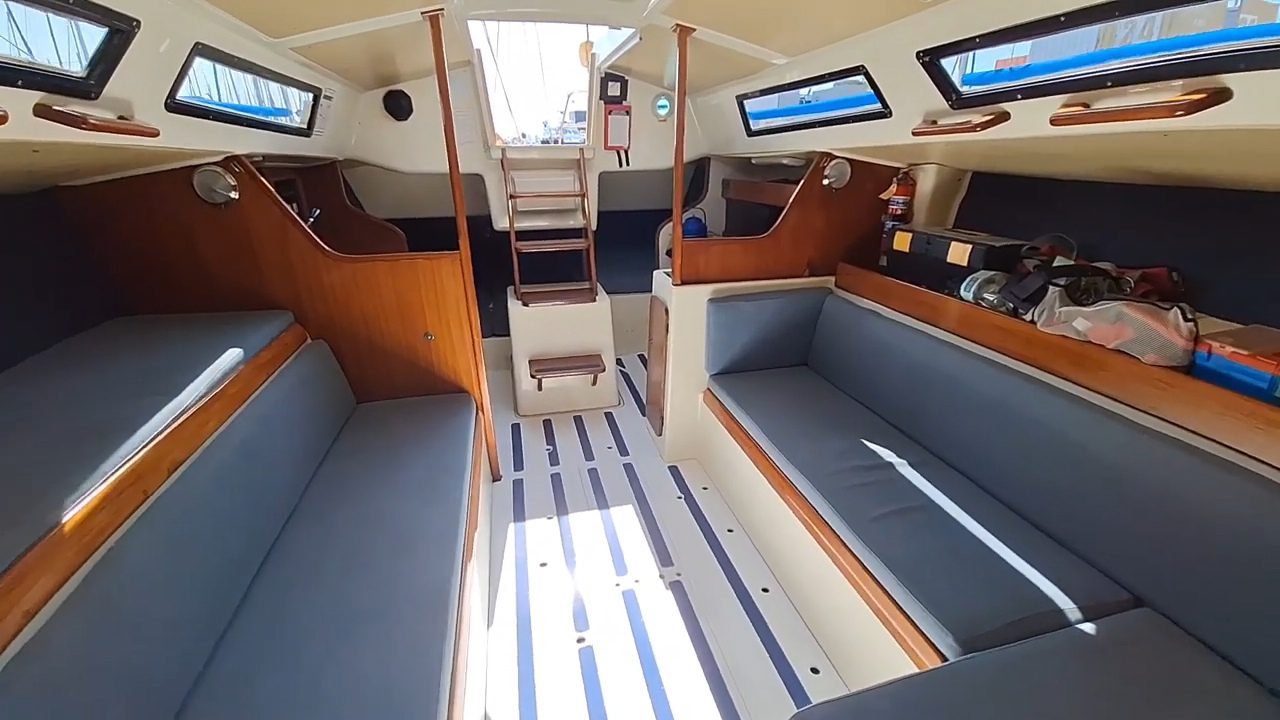

Accommodation

• Total berths: 6

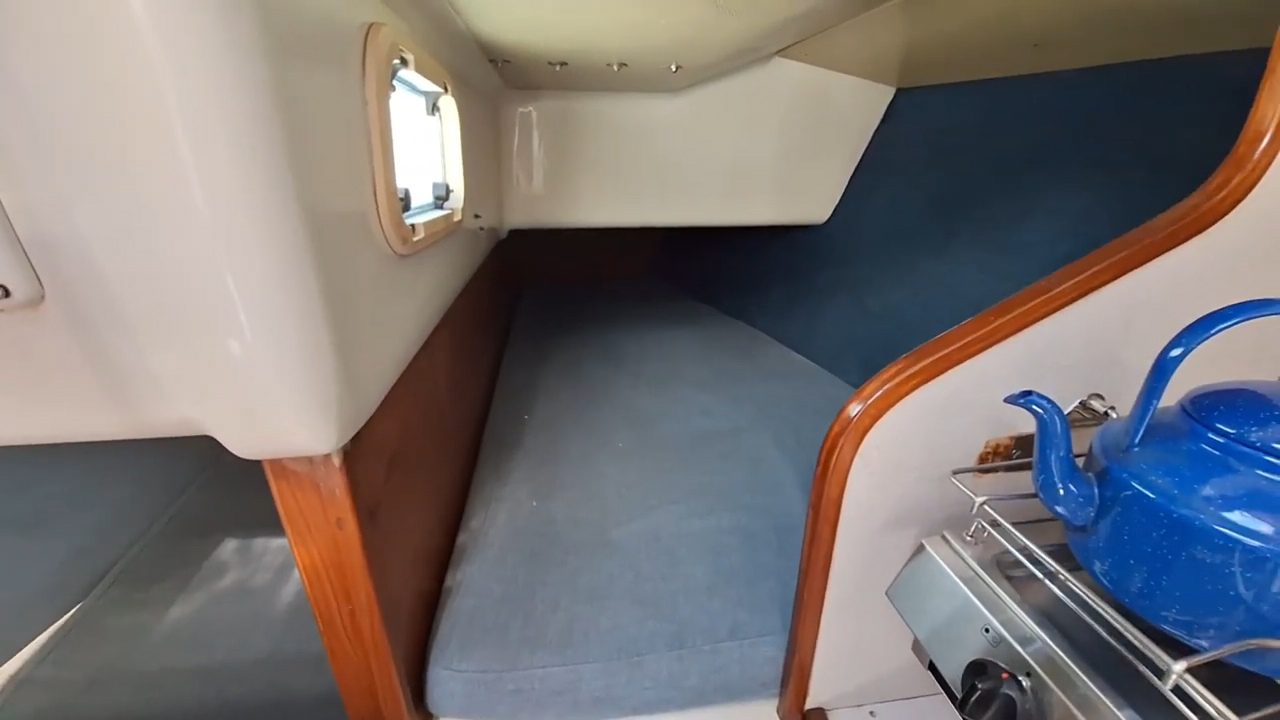

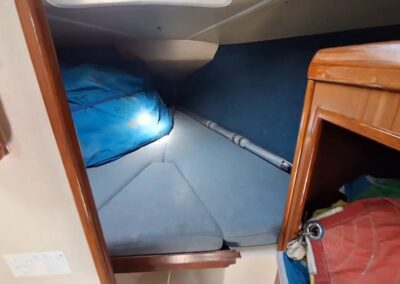

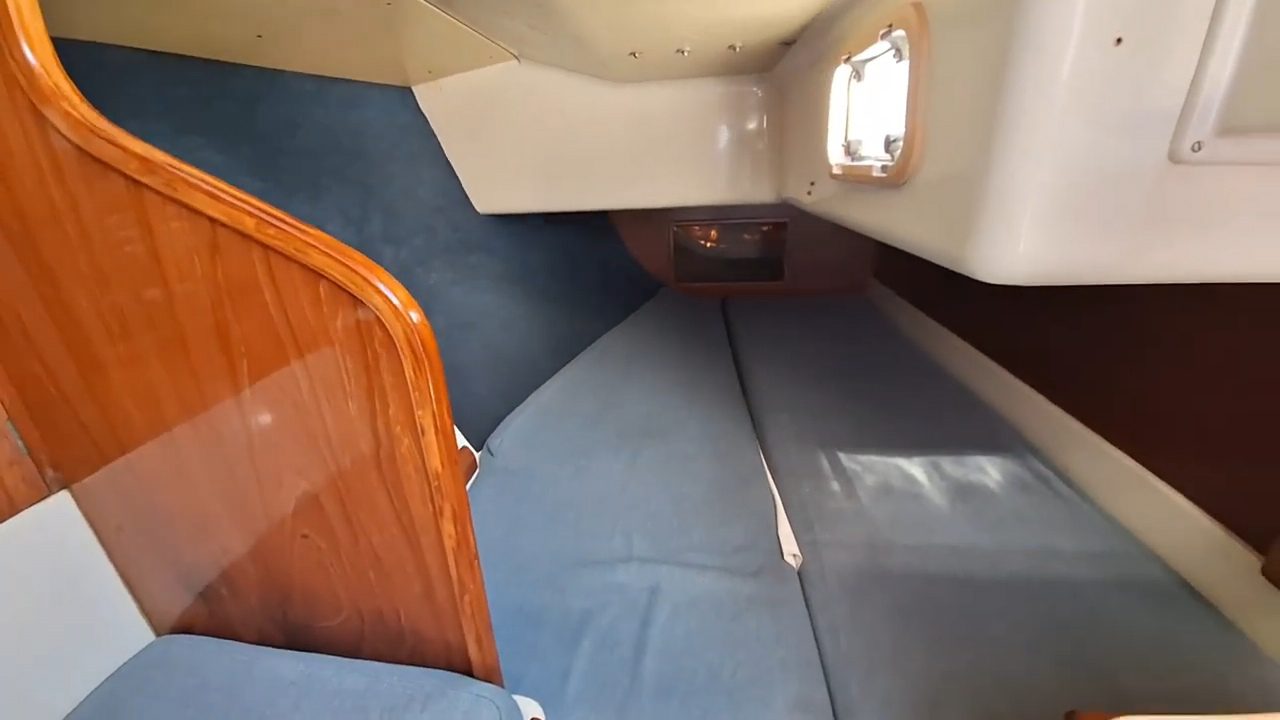

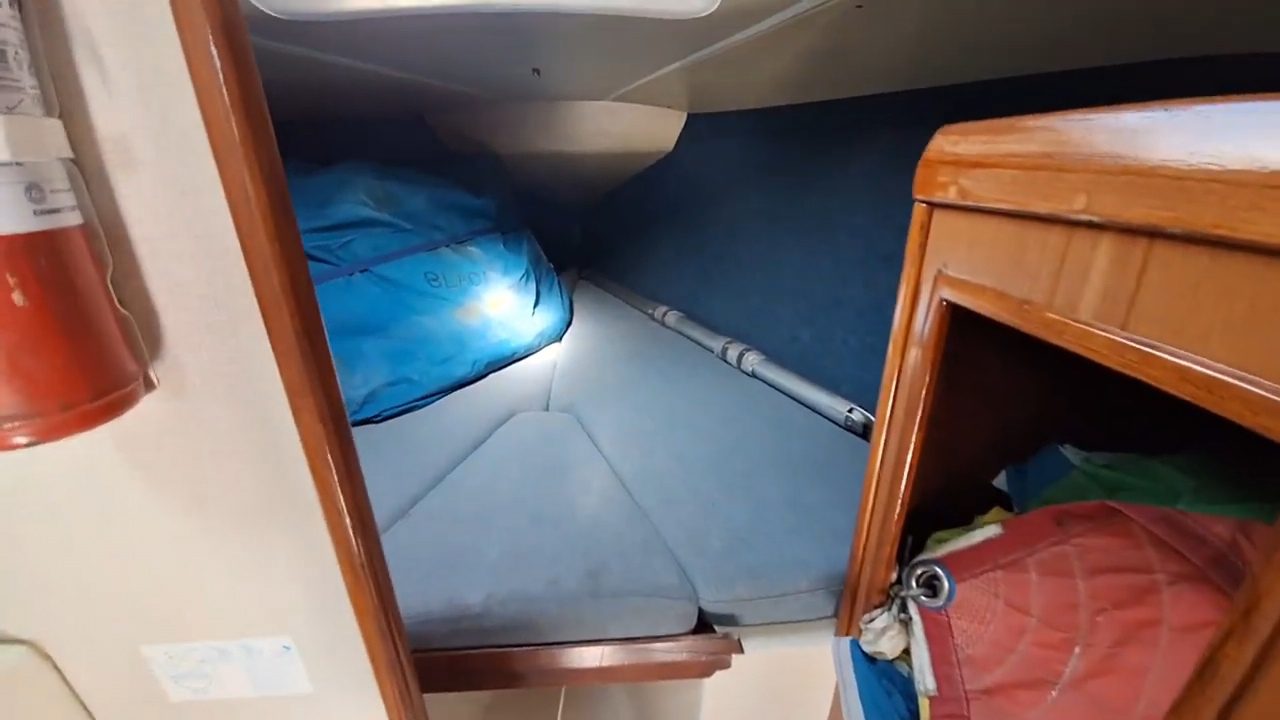

• Double berth in forepeak

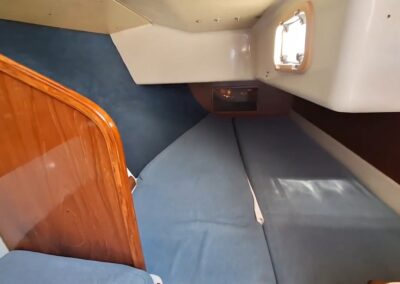

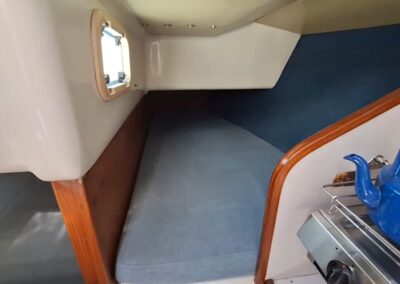

• Double berth aft x 2

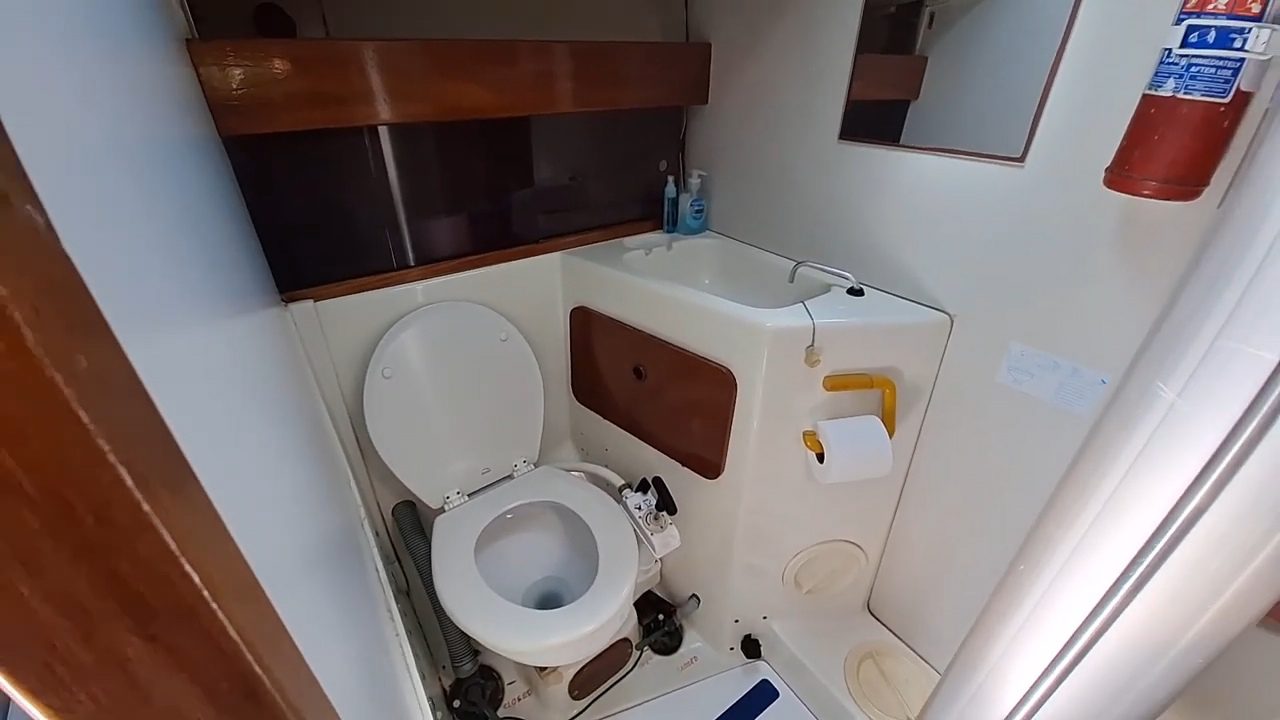

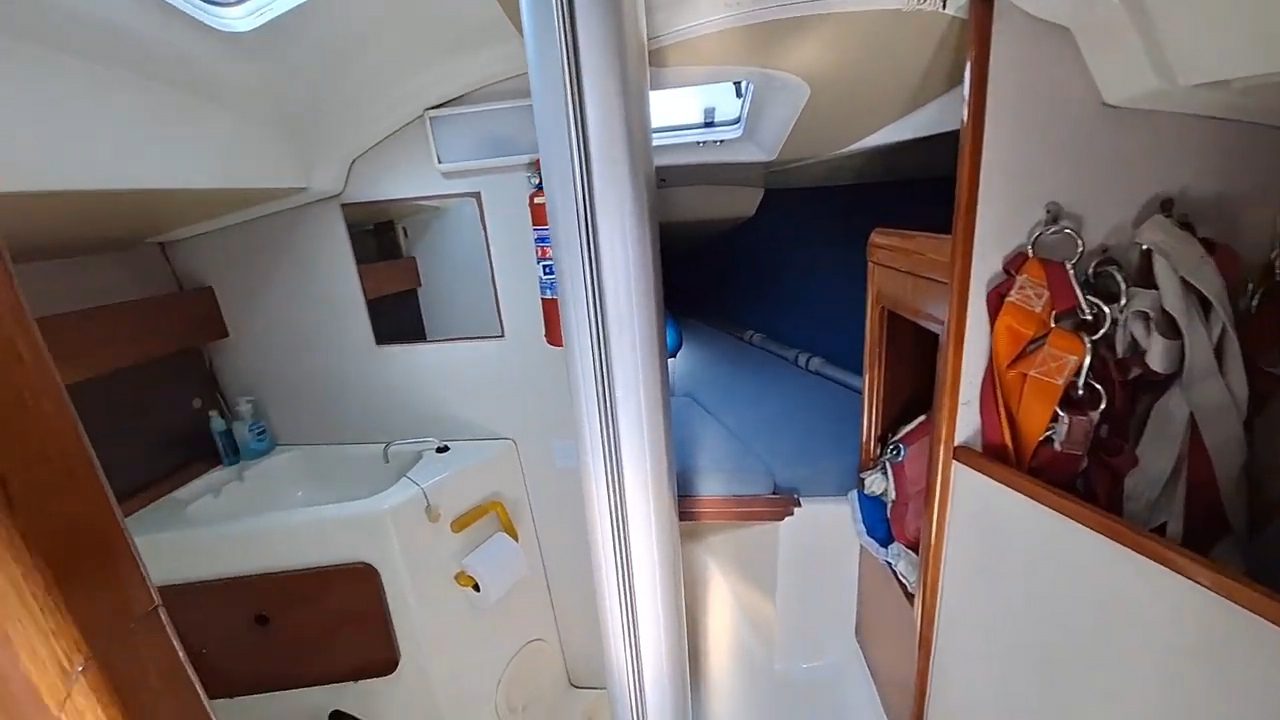

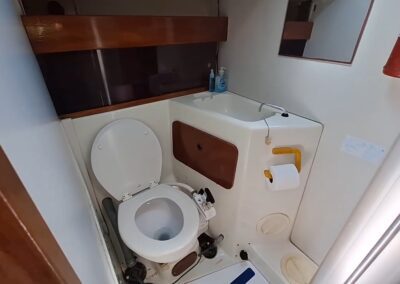

• One heads (bathroom), located forward between saloon and forward cabin, includes new manual toilet and hand basin

Safety Equipment

• 9 life jackets
• 9 harnesses
• 2 life rings
• 2 MOB (man overboard) lights
• Dan buoy
• 2 fire extinguishers (new 2026)
• Radar reflector
• Boat hook
• Bosun’s chair
• First aid kit
• Grab bottle and flares

Extras and Miscellaneous

• Stainless steel barbeque on transom
• Spotlight torch
• 1 bucket

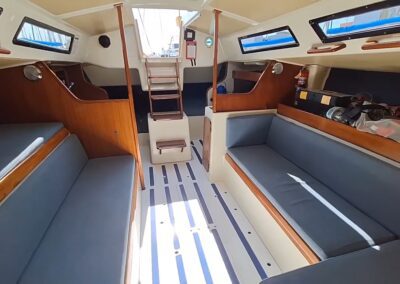

• Saloon table
• 2 water jerry cans

Service History

We bought Lapwing in October 2025 (last year)

1) First thing we did was call in the Yanmar agent to service the 18hp Yanmar diesel engine.
2) A new diesel filter was mounted on the diesel tank.
3) New stern gland fitted.
4) 2 new batteries Deltec 100 amp hour
5) After our first sail we decided to convert the bolt rope track system to a hank on system.
  Associated Rigging did the conversion for us. Took a long time for them to source the track, which they fitted onto the mast. Removed the bolt rope track off the forestay as well.
6) Then North Sails had to modify the Number 3 genoa and the main sail to hank on sails.
7) We had a canvass bag made for the Number 3 genoa so now it sits ready for use on the foredeck.
8) The main sail also got a brand new canvass cover as did the tiller, winches and the guard rail covers.
9) There is a number 1 genoa and a storm sail below – all sails are in excellent condition.
10) Associated Rigging checked all the rigging. They replaced the Running Backstay, they modified the genoa tracks and fixed the traveller car system.
11) The winches were removed and cleaned and serviced.
12) The jammers were removed and cleaned and serviced.
13) The many holes below the winches and jammers were glassed closed.
14) The toilet was replaced with a new toilet, new piping, new stop cock and new through hull fitting for the toilet.
15) Every stop cock on the boat has been replaced.
16) The keel bolts were replaced because they were rusty. There are 20 keel bolts.
17) Lapwing was anti-fouled and a new anode put on the prop shaft
18) The twin blade folding propellor was serviced
19) She has an up to date hull certificate and up to date COF (new fire extinguishers, new flares)
20) She has her ORC rating certificate for racing.
